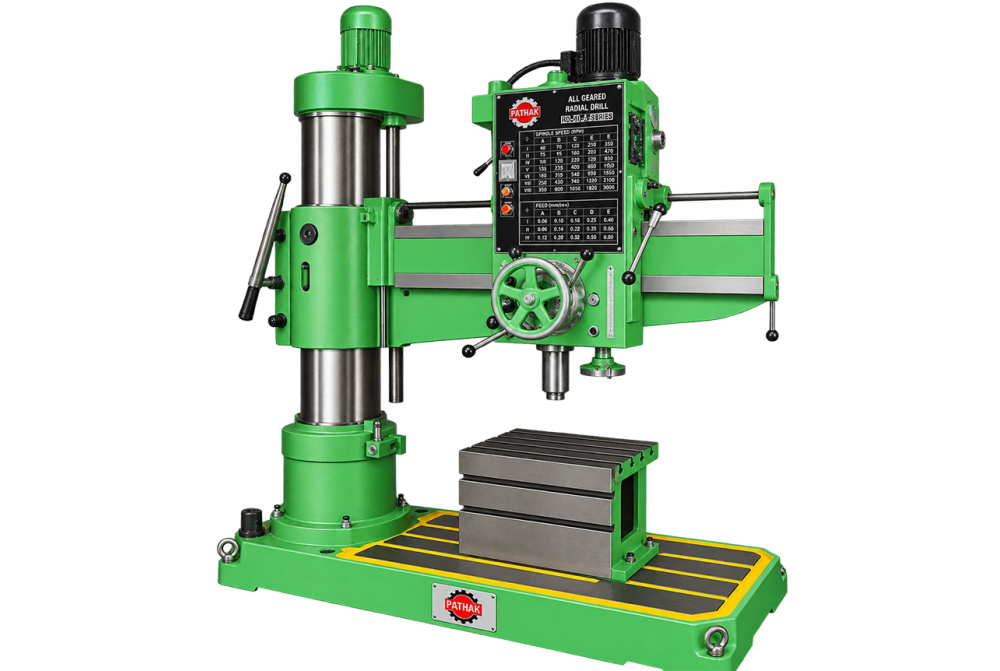

All Geared Radial Drill Machine RD-50 A
Built around drilling varied positions on large or awkward workpieces, the All Geared Radial Drill Machine RD-50 A provides a dedicated working arrangement. The operating method supports heavy fabrication, maintenance, and machine building and centres on extended spindle reach without repeatedly moving the job. An all-geared drive provides selectable mechanical transmission.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
All Geared Radial Drill Machine RD-50 A
Machine Purpose
The All Geared Radial Drill Machine RD-50 A is a purpose-built unit for drilling varied positions on large or awkward workpieces. Its layout is organised around castings, plates, and fabricated assemblies, making it relevant when this operation must be completed in a controlled sequence.
How It Works
Its cycle is based on the way it moves the drill head along a radial arm to reach the hole location. The design therefore prioritises extended spindle reach without repeatedly moving the job; actual output still depends on the chosen model, tool, workpiece, and operating method. An all-geared drive provides selectable mechanical transmission.
Industrial Applications
The machine is applicable to heavy fabrication, maintenance, and machine building. It can support individual jobs, recurring batches, or a dedicated station between earlier preparation and later inspection.
Selection Considerations
Selection should follow the real workpiece, material, operation, production frequency, handling method, and available space. Exact performance data must come from the technical specification for the chosen All Geared Radial Drill Machine RD-50 A.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| TYPE | RD50A |
| Drilling Capacity in Mild Steel | 50 mm |
| Maximum Drilling Radius | 1300 mm |
| Max. Distance between Spindle and Base | 1250 mm |
| Spindle Travel | 250 mm |
| No.of Spindle Speeds | 12 |
| Range of Spindle Speeds RPM | 45-1000 |
| No.of Spindle Feeds | 6 |
| The range of Spindle Feeds mm/rev. | 0.12-1.25 |
| Main Drive Motor | 5 HP |
| Elevating Motor | 3 HP |
Accessories
Standard Accessories / Machine Parts
Box Table
Electric Coolant Pump
Electric Motor & Starter
Electric Wiring & Limit Switches
Pannel Board
Accessories
Optional Accessories
Digital Read Out
Machine Lamp
Machine Vice
Tilting Table
Videos
Product Videos
Short Videos
YouTube Short Videos
Applications
Applications
Rolling Mill
Tool Rooms
Workshops
Educational Institutes
Fasteners Industries
Fabrication Workshops
Precision drilling
Fabrication units
Drilling metal
Drilling wood
Drilling plastic
FAQs
Frequently Asked Questions
What does a All Geared Radial Drill Machine RD-50 A do?
The All Geared Radial Drill Machine RD-50 A is intended for drilling varied positions on large or awkward workpieces. It is arranged around castings, plates, and fabricated assemblies, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
How does the All Geared Radial Drill Machine RD-50 A complete its working cycle?
The machine moves the drill head along a radial arm to reach the hole location. Its extended spindle reach without repeatedly moving the job supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What material should be prepared for a All Geared Radial Drill Machine RD-50 A?
It is primarily associated with castings, plates, and fabricated assemblies. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
Which industries commonly use a All Geared Radial Drill Machine RD-50 A?
Typical users include heavy fabrication, maintenance, and machine building. In these settings, the All Geared Radial Drill Machine RD-50 A may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
What should be checked before buying a All Geared Radial Drill Machine RD-50 A?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
Which parts of a All Geared Radial Drill Machine RD-50 A need regular inspection?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
Which options influence the quotation for a All Geared Radial Drill Machine RD-50 A?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title All Geared Radial Drill Machine RD-50 A.
How does design arrangement affect the All Geared Radial Drill Machine RD-50 A?
An all-geared drive provides selectable mechanical transmission. The practical benefit depends on how that arrangement matches the workpiece, cycle frequency, operator involvement, and surrounding production method.
