Milling Machines

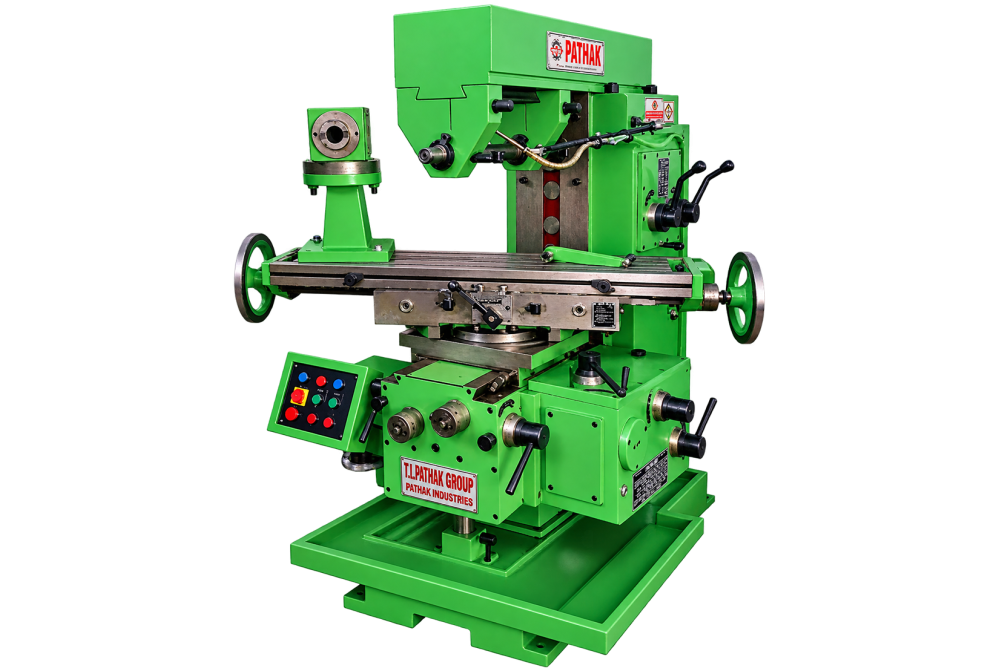

All Geared Milling Machine
Built around machining faces, slots, keyways, and contoured features, the All Geared Milling Machine provides a dedicated working arrangement. It feeds supported work against a rotating multi-edge cutter, with controlled table travel and rigid cutter support. An all-geared drive provides selectable mechanical transmission.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
All Geared Milling Machine
Machine Purpose
Used for machining faces, slots, keyways, and contoured features, the All Geared Milling Machine addresses a distinct stage of industrial work. It accommodates machine parts, dies, fixtures, and repair components and keeps setup, tool engagement, and job handling centred on that task.
Industrial Applications
Likely users are found in tool rooms, maintenance departments, and component factories. They may use it to organise the named operation, reduce repeated handling, and establish a consistent workstation for suitable jobs.
How It Works
In operation, it feeds supported work against a rotating multi-edge cutter. The practical focus is controlled table travel and rigid cutter support. Correct workholding, tooling, supervision, and routine inspection remain important because results depend on the material and setup. An all-geared drive provides selectable mechanical transmission.
Selection Considerations
Selection should follow the real workpiece, material, operation, production frequency, handling method, and available space. Exact performance data must come from the technical specification for the chosen All Geared Milling Machine.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| MODEL | PUM 2 | PUM 3 | PUM 4 | PUM 5 | PUM 6 |
|
TABLE
|
|||||
| Working Surface | 1300 x 300 | 1400 x 330 | 1600 x 350 | 180 x 400 | 2000 x 450 |
| T.Slot Nos./ Size | 3.16 | 3.22 T | 3.22 T | 3.22 T | 3.22 T |
| T.Slot Centre | 70 | 80 | 85 | 90 | 95 |
| Swivel | + 45 deg | + 45 deg | + 45 deg | + 45 deg | + 45 deg |
| Longitudinal Travel- X | 700 | 800 | 1000 | 1200 | 1300 |
| Cross Travel-Y | 215 | 260 | 340 | 380 | 450 |
| Vertical Travel-Z | 450 | 510 | 600 | 650 | 700 |
|
FEEDS
|
|||||
| No. of Feeds | 18 | 18 | 18 | 18 | 18 |
| Long.Feed/Min | 23-420 | 23-420 | 23-420 | 23-420 | 23-420 |
| Cross Feed/Min | 23-420 | 23-420 | 23-420 | 23-420 | 23-420 |
| Vert.Feed/Min | 3-70 | 3-70 | 3-70 | 3-70 | 3-70 |
| No.of Rapid Feed | 1 | 1 | 1 | 1 | 1 |
| Rapid Long & Cross / Min | 1050 | 1050 | 1050 | 1050 | 1050 |
| Rapid Vertical Min | 175 | 175 | 175 | 175 | 175 |
|
SPINDLE
|
|||||
| No. of Spindle Speeds. | 12 | 12 | 12 | 12 | 12 |
| Range of Spindle Speeds | 40 to 1200 RPM | 40 to 1200 RPM | 40 to 1200 RPM | 40 to 1200 RPM | 40 to 1200 RPM |
| Spindle Taper | ISO 40 | ISO 40 | ISO 40 | ISO 50 | ISO 50 |
| Arbor Diameter | 25.4 | 25.4 | 32 | 40 | 40 |
|
POWER
|
|||||
| Main Motor (H.P) | 3 | 5 | 7.5 | 10 | 10 |
| Feed Motor (H.P) | 2 | 2 | 3 | 3 | 5 |
| Coolant Motor (H.P) | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 |
Accessories
Optional Accessories
Rotary Table
Vertical Attachment
Dividing Head
Machine Vice
Rack Cutting Attachment
Slotting Attachment
Applications
Applications
Tool Rooms
Educational Institutes
Aerospace
Maintenance workshops
Fabrication units
Automobile Parts Manufacturing
FAQs
Frequently Asked Questions
Which operation is the All Geared Milling Machine designed to perform?
The All Geared Milling Machine is intended for machining faces, slots, keyways, and contoured features. It is arranged around machine parts, dies, fixtures, and repair components, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
How does a All Geared Milling Machine work?
The machine feeds supported work against a rotating multi-edge cutter. Its controlled table travel and rigid cutter support supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What type of work is suitable for a All Geared Milling Machine?
It is primarily associated with machine parts, dies, fixtures, and repair components. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
What are the common applications of a All Geared Milling Machine?
Typical users include tool rooms, maintenance departments, and component factories. In these settings, the All Geared Milling Machine may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
How can a buyer compare different All Geared Milling Machine models?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
What routine maintenance does a All Geared Milling Machine require?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
Why can the cost of a All Geared Milling Machine vary between models?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title All Geared Milling Machine.
What is the benefit of design arrangement on this All Geared Milling Machine?
An all-geared drive provides selectable mechanical transmission. The practical benefit depends on how that arrangement matches the workpiece, cycle frequency, operator involvement, and surrounding production method.
