Lathe Machines

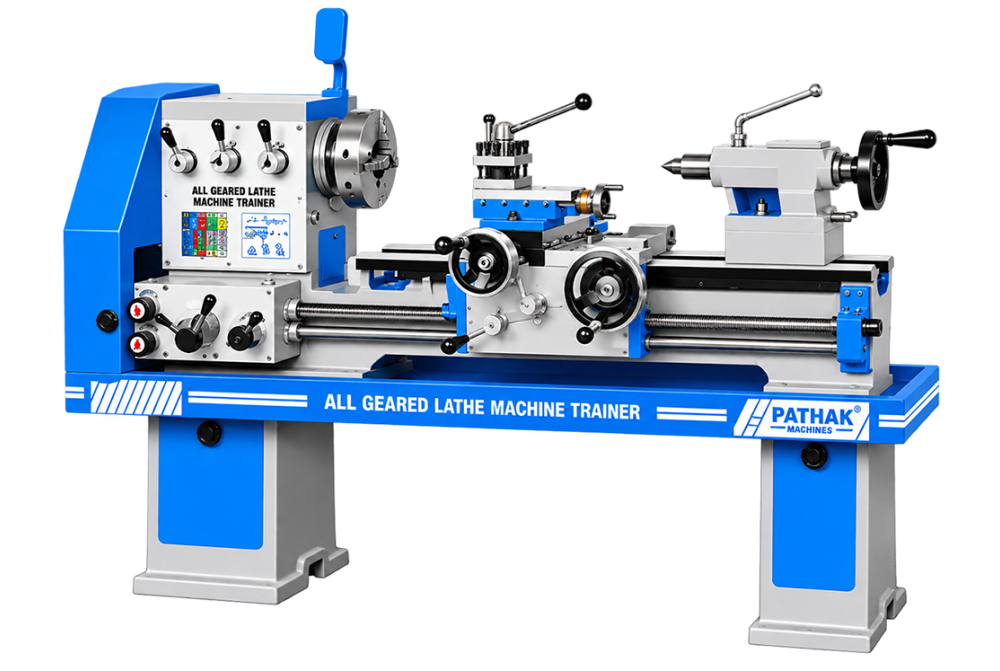

All Geared Lathe Machine Trainer
The All Geared Lathe Machine Trainer is designed for turning rotational components and producing faces, diameters, bores, or threads. Its rigid workholding with controlled tool travel suits machine shops, repair workshops, tool rooms, and component plants. An all-geared drive provides selectable mechanical transmission. The trainer configuration exposes machine functions for supervised instruction.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
All Geared Lathe Machine Trainer
Machine Purpose
Used for turning rotational components and producing faces, diameters, bores, or threads, the All Geared Lathe Machine Trainer addresses a distinct stage of industrial work. It accommodates shafts, bushes, sleeves, discs, and other title-specific round parts and keeps setup, tool engagement, and job handling centred on that task.
Industrial Applications
The machine is applicable to machine shops, repair workshops, tool rooms, and component plants. It can support individual jobs, recurring batches, or a dedicated station between earlier preparation and later inspection.
How It Works
A typical cycle begins with locating the job correctly, after which the machine rotates a securely held workpiece while a guided tool removes material. Its rigid workholding with controlled tool travel supports repeat work without replacing the need for trained operation. An all-geared drive provides selectable mechanical transmission. The trainer configuration exposes machine functions for supervised instruction.
Selection Considerations
Selection should follow the real workpiece, material, operation, production frequency, handling method, and available space. Exact performance data must come from the technical specification for the chosen All Geared Lathe Machine Trainer.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| MODEL | PLD 4 G | PLD 6 G |
| Height of Center | 165 | 165 |
| Swing over Bed | 330 | 330 |
| Swing over Slide | 190 | 190 |
| A.B.C. | 600 mm | 1000mm |
| Width of Bed | 242 | 242 |
| SPINDLE | SPINDLE | |
| Bore | 40 | 40 |
| Nose | Thread | Thread |
| Speed-8 R.P.M | 45 to 1000 | 45 to 1000 |
| TRAVEL | TRAVEL | |
| Cross Slide | 180 | 180 |
| Top Slide | 125 | 125 |
| OTHER | OTHER | |
| Lead Screw TPL | 4 | 4 |
| Tail Stock Sleeve Mt | 3 | 3 |
| Power Required (H.P.) | 2 | 2 |
| THREAD | THREAD | |
| Thread Per inch | 4 to 60 | 4 to 60 |
| Thread Per mm | 0.5 to 7.5 | 0.5 to 7.5 |
Accessories
Standard Accessories / Machine Parts
Chuck Plate
Dead Centers
Face Plate
Follow Rest Assembly
Set of 22 Change Gears
Stationery Steady
Tool Box
Accessories
Optional Accessories
3jaw self centering chuck
4jaw Independent Chuck
Digital Read Out
Electric Coolant Pump
Electric Motor & Starter
Gears to Cut Metric Threads
Norton Gear Box
Revolving Center
Taper turning attachment
Tool Post Grinder
Videos
Product Videos
Applications
Applications
Tool Rooms
Fasteners Industries
Fabrication Workshops
Aerospace Industry
Appliance Manufacturing
Automotive Industry
DIY metalworking and model engineering
Educational Institutes
General Sheet Metal Cutting
Heavy Engineering
Metal Fabrication Shops
Mining Industries
Power Plants
Precision turning of small parts
Shaft turning and thread cutting
Ship Building
Steel & Paper Mills
Sugar Mills
Textile Industries
Turning, facing and taper turning of large diameter shafts
Used for heavy and long workpieces in large scale industries
FAQs
Frequently Asked Questions
Why is a All Geared Lathe Machine Trainer used in industrial work?
The All Geared Lathe Machine Trainer is intended for turning rotational components and producing faces, diameters, bores, or threads. It is arranged around shafts, bushes, sleeves, discs, and other title-specific round parts, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
What happens during operation of a All Geared Lathe Machine Trainer?
The machine rotates a securely held workpiece while a guided tool removes material. Its rigid workholding with controlled tool travel supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What workpieces or materials can a All Geared Lathe Machine Trainer handle?
It is primarily associated with shafts, bushes, sleeves, discs, and other title-specific round parts. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
Where is a All Geared Lathe Machine Trainer typically installed?
Typical users include machine shops, repair workshops, tool rooms, and component plants. In these settings, the All Geared Lathe Machine Trainer may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
Which factors matter when selecting a All Geared Lathe Machine Trainer?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
What maintenance checks are important for a All Geared Lathe Machine Trainer?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
What factors affect the price of a All Geared Lathe Machine Trainer?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title All Geared Lathe Machine Trainer.
How does design arrangement affect the All Geared Lathe Machine Trainer?
An all-geared drive provides selectable mechanical transmission. The trainer configuration exposes machine functions for supervised instruction. The practical benefit depends on how that arrangement matches the workpiece, cycle frequency, operator involvement, and surrounding production method.
