Drilling Machines

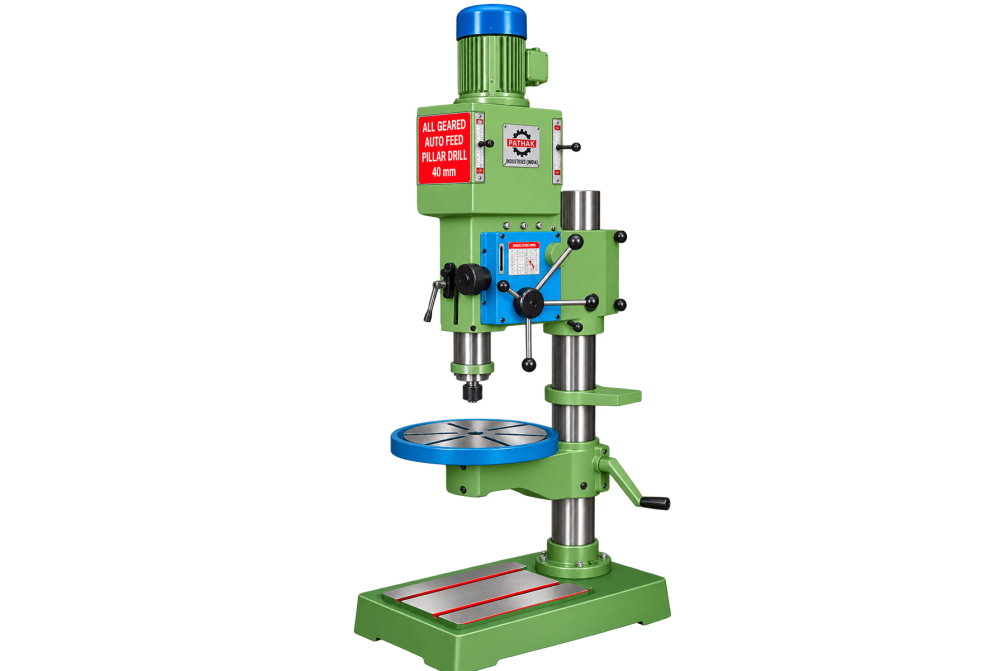

All Geared Auto Feed Pillar Drill 40mm
For work involving metal parts, plates, castings, and fabricated assemblies, the All Geared Auto Feed Pillar Drill 40mm offers a process-specific solution. Typical users include engineering workshops, maintenance departments, and production floors, where stable spindle guidance and practical feed control is valuable. An all-geared drive provides selectable mechanical transmission. Power-assisted feed supports steadier tool advance.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
All Geared Auto Feed Pillar Drill 40mm
Machine Purpose
Used for creating positioned holes and related hole-finishing work, the All Geared Auto Feed Pillar Drill 40mm addresses a distinct stage of industrial work. It accommodates metal parts, plates, castings, and fabricated assemblies and keeps setup, tool engagement, and job handling centred on that task.
Industrial Applications
Likely users are found in engineering workshops, maintenance departments, and production floors. They may use it to organise the named operation, reduce repeated handling, and establish a consistent workstation for suitable jobs.
How It Works
A typical cycle begins with locating the job correctly, after which the machine feeds a rotating tool axially into the supported component. Its stable spindle guidance and practical feed control supports repeat work without replacing the need for trained operation. An all-geared drive provides selectable mechanical transmission. Power-assisted feed supports steadier tool advance.
Selection Considerations
When comparing versions of the All Geared Auto Feed Pillar Drill 40mm, buyers should review the work envelope, tooling, control method, loading, and service access. Numerical capacity, speed, accuracy, or power must be confirmed from the selected model’s documented specification.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Drilling capacity in Steel | 40mm |
| Spindle Taper | JT-6 |
| Spindle Travel | 87 |
| Pillar Diameter | 48 |
| Pillar Length | 765 |
| Distance btw centre of spindle & pillar front | 150 |
| Max Distance btw Spindle & Table | 390 |
| Max Distance btw Spindle & Base | 503 |
| Table working space | Ø 200 |
| Base Working Surface (Machined) | 175 x 175 |
| Overall size of base | 320 x 320 |
| No of Spindle Speeds | 4 |
| Range of Spindle Speeds (rpm) | 640-1040-1640-2540 |
| V Belt | A 36 |
| Motor | 1/2 H.P |
| Net Weight | 52 Kg |
| Space Occupied (LxBxH) | 390 x 300 x 955 |
Applications
Applications
Tool Rooms
Workshops
Educational Institutes
Fasteners Industries
Fabrication Workshops
Face and end milling
Precision drilling
Fabrication units
Drilling metal
Drilling wood
Drilling plastic
FAQs
Frequently Asked Questions
Why is a All Geared Auto Feed Pillar Drill 40mm used in industrial work?
The All Geared Auto Feed Pillar Drill 40mm is intended for creating positioned holes and related hole-finishing work. It is arranged around metal parts, plates, castings, and fabricated assemblies, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
What happens during operation of a All Geared Auto Feed Pillar Drill 40mm?
The machine feeds a rotating tool axially into the supported component. Its stable spindle guidance and practical feed control supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What workpieces or materials can a All Geared Auto Feed Pillar Drill 40mm handle?
It is primarily associated with metal parts, plates, castings, and fabricated assemblies. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
Where is a All Geared Auto Feed Pillar Drill 40mm typically installed?
Typical users include engineering workshops, maintenance departments, and production floors. In these settings, the All Geared Auto Feed Pillar Drill 40mm may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
Which factors matter when selecting a All Geared Auto Feed Pillar Drill 40mm?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
What maintenance checks are important for a All Geared Auto Feed Pillar Drill 40mm?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
What factors affect the price of a All Geared Auto Feed Pillar Drill 40mm?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title All Geared Auto Feed Pillar Drill 40mm.
What is the benefit of design arrangement on this All Geared Auto Feed Pillar Drill 40mm?
An all-geared drive provides selectable mechanical transmission. Power-assisted feed supports steadier tool advance. The practical benefit depends on how that arrangement matches the workpiece, cycle frequency, operator involvement, and surrounding production method.
