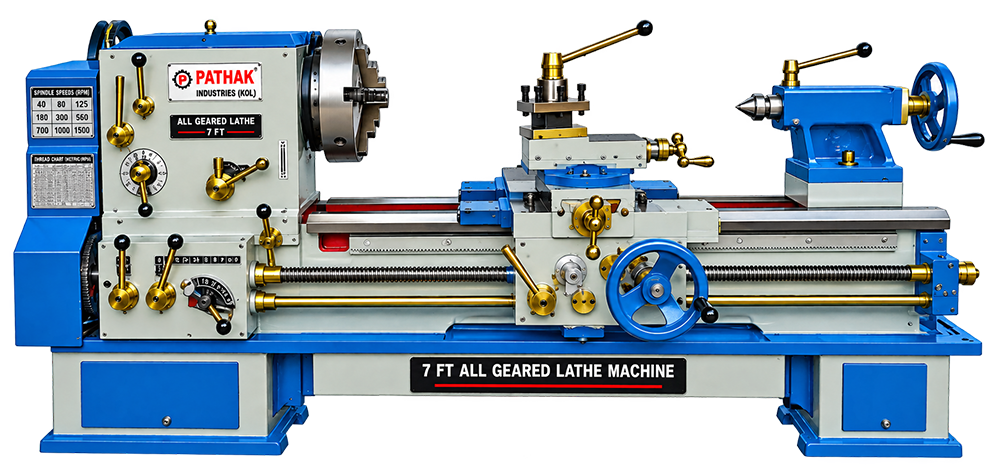

7 FT All Geared Lathe Machine
The 7 FT All Geared Lathe Machine is designed for turning rotational components and producing faces, diameters, bores, or threads. The operating method supports machine shops, repair workshops, tool rooms, and component plants and centres on rigid workholding with controlled tool travel. An all-geared drive provides selectable mechanical transmission.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
7 FT All Geared Lathe Machine
Machine Purpose
For facilities needing turning rotational components and producing faces, diameters, bores, or threads, the 7 FT All Geared Lathe Machine offers a process-specific workstation. Its arrangement supports shafts, bushes, sleeves, discs, and other title-specific round parts while keeping the important operating area accessible.
Industrial Applications
Likely users are found in machine shops, repair workshops, tool rooms, and component plants. They may use it to organise the named operation, reduce repeated handling, and establish a consistent workstation for suitable jobs.
How It Works
Its cycle is based on the way it rotates a securely held workpiece while a guided tool removes material. The design therefore prioritises rigid workholding with controlled tool travel; actual output still depends on the chosen model, tool, workpiece, and operating method. An all-geared drive provides selectable mechanical transmission.
Selection Considerations
When comparing versions of the 7 FT All Geared Lathe Machine, buyers should review the work envelope, tooling, control method, loading, and service access. Numerical capacity, speed, accuracy, or power must be confirmed from the selected model’s documented specification.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Model | HAL-614/2 | HAL-816/2 | HAL-1018/2 | HAL-1220 | HAL-1422 |
|---|---|---|---|---|---|
| Length of bed | 61/2 Ft. | 81/2 Ft. | 101/2 Ft. | 12 Ft. | 14 Ft. |
| Width of bed | 375 MM | 375 MM | 450 MM | 500 MM | 550 MM |
| Height of Center | 300 MM | 300 MM | 400 MM | 450 MM | 550 MM |
| Swing Over Bed | 600 MM | 600 MM | 800 MM | 900 MM | 1000 MM |
| Swing Over Cross Slide | 325 MM | 325 MM | 530 MM | 600 MM | 630 MM |
| Swing In gap | 865 MM | 865 MM | 12000 MM | 1300 MM | 1400 MM |
| Admit Between Center | 100 MM | 1500 MM | 200 MM | 2500 MM | 3000 MM |
| NO’s of Spindle Speeds | 8 | 8 | 9 | 9 | 8 |
| RPM Range | 30-720 | 30-720 | 30-720 | 15-450 | 30-720 |
| Spindle Hollow | 65 MM | 65 MM | 90 MM | 103 MM | 103 MM |
| Metric Threads | 1-14 | 1-14 | 1-14 | 1-14 | 1-14 |
| With Worth Threads TPI | 2-30 | 2-30 | 2-30 | 2-30 | 2-30 |
| No of Feeds | 30 | 30 | 30 | 30 | 30 |
| Electic Motor RPM | 3*1440 | 3*1440 | 5*1440 | 5*1440 | 7.5*1440 |
Accessories
Standard Accessories / Machine Parts
Chuck Plate
Dead Centers
Face Plate
Follow Rest Assembly
Set of 22 Change Gears
Stationery Steady
Tool Box
Accessories
Optional Accessories
3jaw self centering chuck
4jaw Independent Chuck
Digital Read Out
Electric Coolant Pump
Electric Motor & Starter
Gears to Cut Metric Threads
Norton Gear Box
Revolving Center
Taper turning attachment
Tool Post Grinder
Applications
Applications
Aerospace Industry
Appliance Manufacturing
Automotive Industry
DIY metalworking and model engineering
Educational Institutes
Fabrication Workshops
General Sheet Metal Cutting
Heavy Engineering
Metal Fabrication Shops
Mining Industries
Power Plants
Precision turning of small parts
Shaft turning and thread cutting
Ship Building
Fasteners Industries
Steel & Paper Mills
Sugar Mills
Textile Industries
Tool Rooms
Turning, facing and taper turning of large diameter shafts
Used for heavy and long workpieces in large scale industries
FAQs
Frequently Asked Questions
Why is a 7 FT All Geared Lathe Machine used in industrial work?
The 7 FT All Geared Lathe Machine is intended for turning rotational components and producing faces, diameters, bores, or threads. It is arranged around shafts, bushes, sleeves, discs, and other title-specific round parts, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
What happens during operation of a 7 FT All Geared Lathe Machine?
The machine rotates a securely held workpiece while a guided tool removes material. Its rigid workholding with controlled tool travel supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What workpieces or materials can a 7 FT All Geared Lathe Machine handle?
It is primarily associated with shafts, bushes, sleeves, discs, and other title-specific round parts. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
Where is a 7 FT All Geared Lathe Machine typically installed?
Typical users include machine shops, repair workshops, tool rooms, and component plants. In these settings, the 7 FT All Geared Lathe Machine may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
Which factors matter when selecting a 7 FT All Geared Lathe Machine?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
What maintenance checks are important for a 7 FT All Geared Lathe Machine?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
What factors affect the price of a 7 FT All Geared Lathe Machine?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title 7 FT All Geared Lathe Machine.
What is the benefit of design arrangement on this 7 FT All Geared Lathe Machine?
An all-geared drive provides selectable mechanical transmission. The practical benefit depends on how that arrangement matches the workpiece, cycle frequency, operator involvement, and surrounding production method.
