Lathe Machines

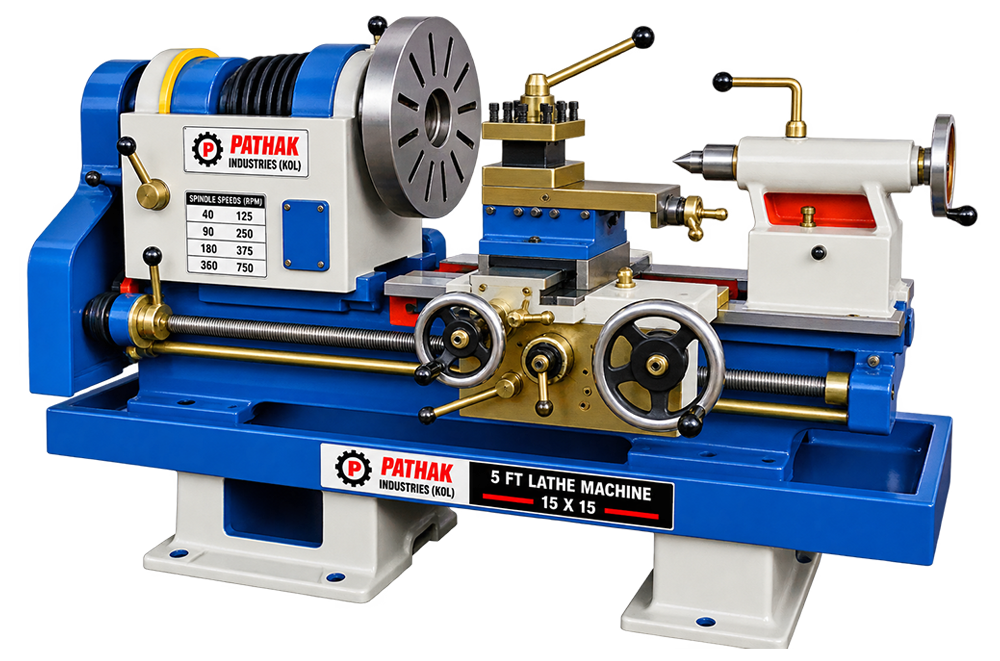

5 FT Lathe Machine 15 X 15
Built around turning rotational components and producing faces, diameters, bores, or threads, the 5 FT Lathe Machine 15 X 15 provides a dedicated working arrangement. The operating method supports machine shops, repair workshops, tool rooms, and component plants and centres on rigid workholding with controlled tool travel.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
5 FT Lathe Machine 15 X 15
Machine Purpose
The 5 FT Lathe Machine 15 X 15 is a purpose-built unit for turning rotational components and producing faces, diameters, bores, or threads. Its layout is organised around shafts, bushes, sleeves, discs, and other title-specific round parts, making it relevant when this operation must be completed in a controlled sequence.
How It Works
In operation, it rotates a securely held workpiece while a guided tool removes material. The practical focus is rigid workholding with controlled tool travel. Correct workholding, tooling, supervision, and routine inspection remain important because results depend on the material and setup.
Industrial Applications
Likely users are found in machine shops, repair workshops, tool rooms, and component plants. They may use it to organise the named operation, reduce repeated handling, and establish a consistent workstation for suitable jobs.
Selection Considerations
Machines within lathe machines can differ in arrangement and capability. The required 5 FT Lathe Machine 15 X 15 should therefore be matched to actual samples or process details, with tooling, controls, guarding, and utilities verified before ordering.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| TECHNICAL DATA AND SPECIFICATIONS FOR STANDARD MODEL VGM – 215 SUPER SERIES | |
|---|---|
| Centre Height over flat bed ways | 215 m.m. |
| Swing Over Bed | 423 m.m. |
| Swing Over Cross Slide | 250 m.m. |
| Swing in Gap | 620 m.m. |
| Width of Bed | 277 m.m. |
| MODEL | ADMIT BETWEEN CENTRES | LENGTH OF BED | Floor Space Occupied (m.m.) |
Approx.Weight in Kgs. | Approx. Case Dimensions (m.m.) |
|
|---|---|---|---|---|---|---|
| Nett. | Gross | |||||
| HGM-1 | 450 m.m. | 1370 m.m.(4′-6″) | 1650×970 | 775 | 825 | 2000x1000x1500 |
| HGM-2 | 725 m.m. | 1600 m.m.(5′-3″) | 1950×970 | 850 | 900 | 2200x1000x1500 |
| HGM-3 | 950 m.m. | 1830 m.m.(6′) | 2100×970 | 875 | 925 | 2500x1000x1500 |
Accessories
Standard Accessories / Machine Parts
Chuck Plate
Dead Centers
Face Plate
Follow Rest Assembly
Set of 22 Change Gears
Stationery Steady
Tool Box
Accessories
Optional Accessories
3jaw self centering chuck
4jaw Independent Chuck
Digital Read Out
Electric Coolant Pump
Electric Motor & Starter
Gears to Cut Metric Threads
Norton Gear Box
Revolving Center
Taper turning attachment
Tool Post Grinder
Applications
Applications
Aerospace Industry
Appliance Manufacturing
Automotive Industry
DIY metalworking and model engineering
Educational Institutes
Fabrication Workshops
General Sheet Metal Cutting
Heavy Engineering
Metal Fabrication Shops
Mining Industries
Power Plants
Precision turning of small parts
Shaft turning and thread cutting
Ship Building
Fasteners Industries
Steel & Paper Mills
Sugar Mills
Textile Industries
Tool Rooms
Turning, facing and taper turning of large diameter shafts
Used for heavy and long workpieces in large scale industries
FAQs
Frequently Asked Questions
What does a 5 FT Lathe Machine 15 X 15 do?
The 5 FT Lathe Machine 15 X 15 is intended for turning rotational components and producing faces, diameters, bores, or threads. It is arranged around shafts, bushes, sleeves, discs, and other title-specific round parts, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
How does the 5 FT Lathe Machine 15 X 15 complete its working cycle?
The machine rotates a securely held workpiece while a guided tool removes material. Its rigid workholding with controlled tool travel supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What material should be prepared for a 5 FT Lathe Machine 15 X 15?
It is primarily associated with shafts, bushes, sleeves, discs, and other title-specific round parts. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
Which industries commonly use a 5 FT Lathe Machine 15 X 15?
Typical users include machine shops, repair workshops, tool rooms, and component plants. In these settings, the 5 FT Lathe Machine 15 X 15 may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
What should be checked before buying a 5 FT Lathe Machine 15 X 15?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
Which parts of a 5 FT Lathe Machine 15 X 15 need regular inspection?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
Which options influence the quotation for a 5 FT Lathe Machine 15 X 15?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title 5 FT Lathe Machine 15 X 15.
