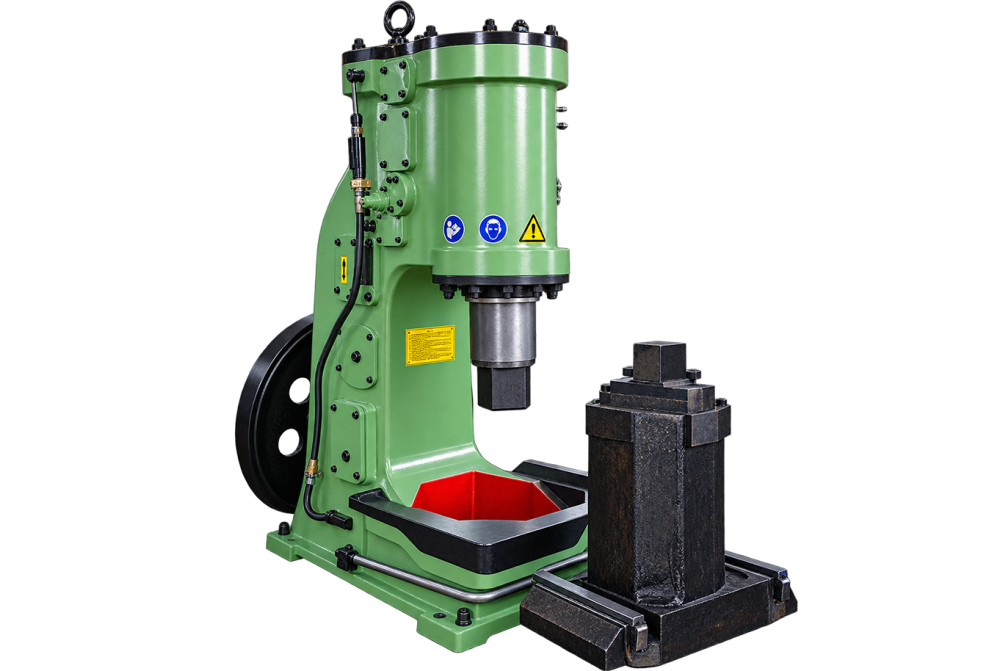

40 kg Air Hammer Machine
Built around forging and shaping heated metal, the 40 kg Air Hammer Machine provides a dedicated working arrangement. The operating method supports forge shops, tool production, and blacksmith workshops and centres on repetitive impact that reduces manual hammering.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
40 kg Air Hammer Machine
Machine Purpose
The 40 kg Air Hammer Machine is a purpose-built unit for forging and shaping heated metal. Its layout is organised around bars, billets, tools, and forged components, making it relevant when this operation must be completed in a controlled sequence.
How It Works
Its cycle is based on the way it delivers repeated powered blows between upper and lower tooling. The design therefore prioritises repetitive impact that reduces manual hammering; actual output still depends on the chosen model, tool, workpiece, and operating method.
Industrial Applications
Natural settings include forge shops, tool production, and blacksmith workshops. There the machine may serve production, repair, preparation, assembly, finishing, or testing according to its title and the surrounding workflow.
Selection Considerations
When comparing versions of the 40 kg Air Hammer Machine, buyers should review the work envelope, tooling, control method, loading, and service access. Numerical capacity, speed, accuracy, or power must be confirmed from the selected model’s documented specification.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Model | PAH-40 |
| Weight of Falling Parts | 40 kg |
| Max. Hit Energy | 0.53 KJ |
| Height of Working Area | 245 mm |
| Hit Number | 235 min |
| Max. Square Steel Dia Can be forged | 60x60 mm |
| Max. Round Steel Dia Can be forged | 70 mm |
| Rate Power | 4 KW |
| Voltage | 380 V or Customized |
| Total Weights | 1500 kg |
| Overall Dimension (LxWxH) | 1200x600x1500 mm |
Short Videos
YouTube Short Videos
FAQs
Frequently Asked Questions
Why is a 40 kg Air Hammer Machine used in industrial work?
The 40 kg Air Hammer Machine is intended for forging and shaping heated metal. It is arranged around bars, billets, tools, and forged components, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
What happens during operation of a 40 kg Air Hammer Machine?
The machine delivers repeated powered blows between upper and lower tooling. Its repetitive impact that reduces manual hammering supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What workpieces or materials can a 40 kg Air Hammer Machine handle?
It is primarily associated with bars, billets, tools, and forged components. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
Where is a 40 kg Air Hammer Machine typically installed?
Typical users include forge shops, tool production, and blacksmith workshops. In these settings, the 40 kg Air Hammer Machine may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
Which factors matter when selecting a 40 kg Air Hammer Machine?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
What maintenance checks are important for a 40 kg Air Hammer Machine?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
What factors affect the price of a 40 kg Air Hammer Machine?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title 40 kg Air Hammer Machine.
