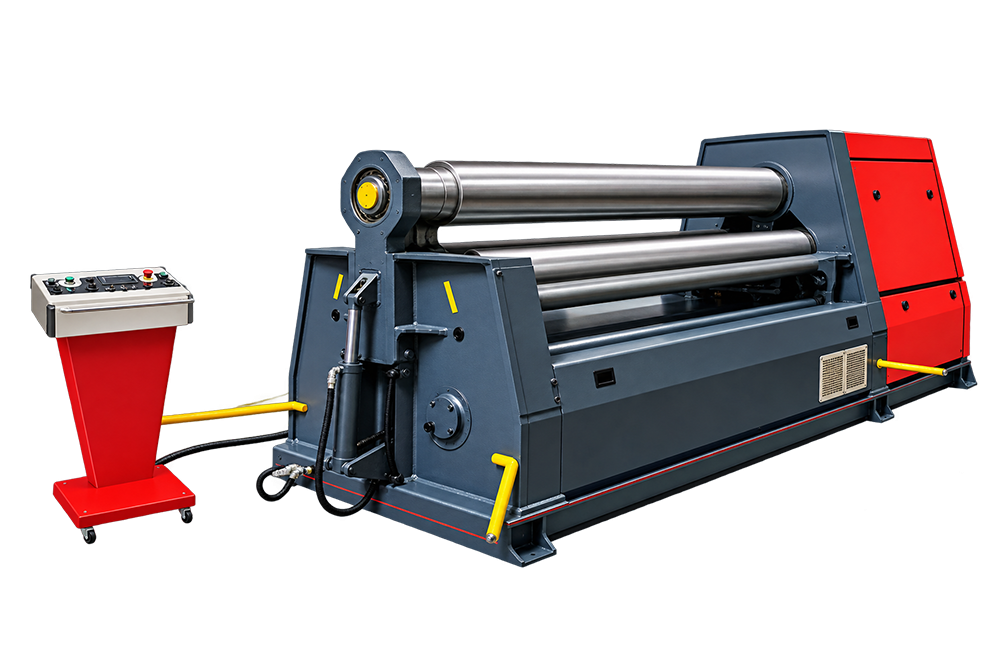

3 Roll Plate Bending Machine (Pre Pinching Type)
Sheet Metal Machines

3 Roll Plate Bending Machine (Pre Pinching Type)

The 3 Roll Plate Bending Machine (Pre Pinching Type) handles the metal stock identified by the machine title through a layout intended for forming sheet, plate, pipe, bar, or sections into required shapes. Its dedicated tooling that supports material during forming suits structural fabrication, sheet-metal shops, and component production.

Enquire Now Technical Specifications

Order By Phone

Shipping Information Usually dispatched With In business days

+91-91240-09247 +91-88959-29247
Overview

Product Overview

3 Roll Plate Bending Machine (Pre Pinching Type)

Machine Purpose

Used for forming sheet, plate, pipe, bar, or sections into required shapes, the 3 Roll Plate Bending Machine (Pre Pinching Type) addresses a distinct stage of industrial work. It accommodates the metal stock identified by the machine title and keeps setup, tool engagement, and job handling centred on that task.

Industrial Applications

The machine is applicable to structural fabrication, sheet-metal shops, and component production. It can support individual jobs, recurring batches, or a dedicated station between earlier preparation and later inspection.

How It Works

Its cycle is based on the way it draws, presses, or rolls supported material around suitable tooling. The design therefore prioritises dedicated tooling that supports material during forming; actual output still depends on the chosen model, tool, workpiece, and operating method.

Selection Considerations

Machines within sheet metal machines can differ in arrangement and capability. The required 3 Roll Plate Bending Machine (Pre Pinching Type) should therefore be matched to actual samples or process details, with tooling, controls, guarding, and utilities verified before ordering.

Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.

Specifications

Technical Specifications

Model Working Roll Length Bending Thickness (MS.) Pre-Bending Thickness (SS.) Top Roll Diameter Bottom Roll Diameter Motor H.P. Lenght Height Width
MPBD-3R-0621 2100 mm 6 mm 4 mm 160 mm 140 mm 3 3950 mm 1160 mm 1080 mm
MPBD-3R-0821 2100 mm 8 mm 6 mm 190 mm 170 mm 5 3950 mm 1160 mm 1080 mm
MPBD-3R-1021 2100 mm 10 mm 8 mm 210 mm 190 mm 10 3950 mm 1160 mm 1080 mm
MPBD-3R-1221 2100 mm 12 mm 10 mm 230 mm 210 mm 10 4030 mm 1275 mm 1370 mm
MPBD-3R-1621 2100 mm 16 mm 12 mm 270 mm 250 mm 15 4180 mm 1385 mm 1440 mm
MPBD-3R-2021 2100 mm 20 mm 16 mm 300 mm 270 mm 20 4440 mm 1630 mm 1620 mm
MPBD-3R-2521 2100 mm 25 mm 20 mm 330 mm 300 mm 20 4250 mm 1850 mm 1800 mm
MPBD-3R-3021 2100 mm 30 mm 25 mm 360 mm 330 mm 25 4500 mm 2000 mm 1900 mm
MPBD-3R-4021 2100 mm 40 mm 30 mm 390 mm 360 mm 30 4900 mm 2200 mm 2000 mm
MPBD-3R-5021 2100 mm 50 mm 40 mm 430 mm 390 mm 40 5200 mm 2500 mm 2200 mm
MPBD-3R-0626 2600 mm 6 mm 4 mm 190 mm 170 mm 5 4450 mm 1160 mm 1080 mm
MPBD-3R-0826 2600 mm 8 mm 6 mm 210 mm 190 mm 10 4450 mm 1160 mm 1080 mm
MPBD-3R-1026 2600 mm 10 mm 8 mm 230 mm 210 mm 10 4530 mm 1300 mm 1370 mm
MPBD-3R-1226 2600 mm 12 mm 10 mm 270 mm 250 mm 15 4680 mm 1350 mm 1450 mm
MPBD-3R-1626 2600 mm 16 mm 12 mm 300 mm 270 mm 15 5000 mm 1650 mm 1650 mm
MPBD-3R-2026 2600 mm 20 mm 16 mm 330 mm 300 mm 20 5000 mm 1850 mm 1850 mm
MPBD-3R-2526 2600 mm 25 mm 20 mm 360 mm 330 mm 25 4900 mm 1950 mm 1850 mm
MPBD-3R-3026 2600 mm 30 mm 25 mm 390 mm 360 mm 30 5400 mm 2150 mm 2000 mm
MPBD-3R-4026 2600 mm 40 mm 30 mm 430 mm 390 mm 40 6000 mm 2250 mm 2200 mm
MPBD-3R-0631 3100 mm 6 mm 4 mm 210 mm 190 mm 7.5 5000 mm 1200 mm 1100 mm
MPBD-3R-0831 3100 mm 8 mm 6 mm 230 mm 210 mm 10 5100 mm 1300 mm 1400 mm
MPBD-3R-1031 3100 mm 10 mm 8 mm 270 mm 250 mm 10 5200 mm 1400 mm 1500 mm
MPBD-3R-1231 3100 mm 12 mm 10 mm 300 mm 270 mm 15 5500 mm 1700 mm 1700 mm
MPBD-3R-1631 3100 mm 16 mm 12 mm 330 mm 300 mm 20 5700 mm 1900 mm 1900 mm
MPBD-3R-2031 3100 mm 20 mm 16 mm 360 mm 330 mm 20 5700 mm 1900 mm 1900 mm
MPBD-3R-2531 3100 mm 25 mm 20 mm 390 mm 360 mm 25 5900 mm 2000 mm 2100 mm
MPBD-3R-3031 3100 mm 30 mm 25 mm 430 mm 390 mm 30 6000 mm 2200 mm 2300 mm
MPBD-3R-4031 3100 mm 40 mm 30 mm 460 mm 420 mm 40 6200 mm 2450 mm 2400 mm
MPBD-3R-5031 3100 mm 50 mm 40 mm 510 mm 460 mm 60 6400 mm 2800 mm 2500 mm
MPBD-3R-0641 4100 mm 6 mm 4 mm 270 mm 250 mm 7.5 6200 mm 1400 mm 1500 mm
MPBD-3R-0841 4100 mm 8 mm 6 mm 300 mm 270 mm 10 6200 mm 1700 mm 1700 mm
MPBD-3R-1041 4100 mm 10 mm 8 mm 330 mm 300 mm 10 6400 mm 1900 mm 1900 mm
MPBD-3R-1241 4100 mm 12 mm 10 mm 360 mm 330 mm 15 6500 mm 1900 mm 1900 mm
MPBD-3R-1641 4100 mm 16 mm 12 mm 390 mm 360 mm 20 7000 mm 2000 mm 2000 mm
MPBD-3R-2041 4100 mm 20 mm 16 mm 430 mm 390 mm 20 7200 mm 2200 mm 2200 mm
MPBD-3R-2541 4100 mm 25 mm 20 mm 460 mm 320 mm 25 7300 mm 2500 mm 2350 mm
MPBD-3R-3041 4100 mm 30 mm 25 mm 510 mm 460 mm 30 7500 mm 2800 mm 2500 mm
FAQs

Frequently Asked Questions

Why is a 3 Roll Plate Bending Machine (Pre Pinching Type) used in industrial work?
The 3 Roll Plate Bending Machine (Pre Pinching Type) is intended for forming sheet, plate, pipe, bar, or sections into required shapes. It is arranged around the metal stock identified by the machine title, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
What happens during operation of a 3 Roll Plate Bending Machine (Pre Pinching Type)?
The machine draws, presses, or rolls supported material around suitable tooling. Its dedicated tooling that supports material during forming supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What workpieces or materials can a 3 Roll Plate Bending Machine (Pre Pinching Type) handle?
It is primarily associated with the metal stock identified by the machine title. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
Where is a 3 Roll Plate Bending Machine (Pre Pinching Type) typically installed?
Typical users include structural fabrication, sheet-metal shops, and component production. In these settings, the 3 Roll Plate Bending Machine (Pre Pinching Type) may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
Which factors matter when selecting a 3 Roll Plate Bending Machine (Pre Pinching Type)?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
What maintenance checks are important for a 3 Roll Plate Bending Machine (Pre Pinching Type)?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
What factors affect the price of a 3 Roll Plate Bending Machine (Pre Pinching Type)?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title 3 Roll Plate Bending Machine (Pre Pinching Type).
