Lathe Machines

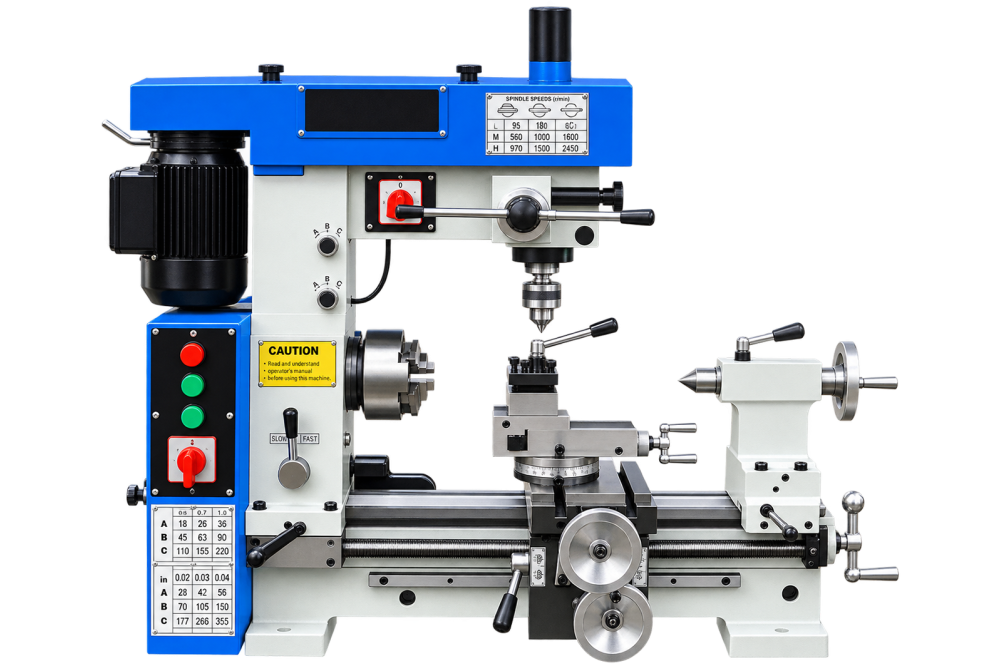

3 in 1 Lathe Cum Milling and Drilling Machine
The 3 in 1 Lathe Cum Milling and Drilling Machine is designed for machining faces, slots, keyways, and contoured features. The operating method supports tool rooms, maintenance departments, and component factories and centres on controlled table travel and rigid cutter support.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
3 in 1 Lathe Cum Milling and Drilling Machine
Machine Purpose
For facilities needing machining faces, slots, keyways, and contoured features, the 3 in 1 Lathe Cum Milling and Drilling Machine offers a process-specific workstation. Its arrangement supports machine parts, dies, fixtures, and repair components while keeping the important operating area accessible.
Industrial Applications
Natural settings include tool rooms, maintenance departments, and component factories. There the machine may serve production, repair, preparation, assembly, finishing, or testing according to its title and the surrounding workflow.
How It Works
Its cycle is based on the way it feeds supported work against a rotating multi-edge cutter. The design therefore prioritises controlled table travel and rigid cutter support; actual output still depends on the chosen model, tool, workpiece, and operating method.
Selection Considerations
Machines within lathe machines can differ in arrangement and capability. The required 3 in 1 Lathe Cum Milling and Drilling Machine should therefore be matched to actual samples or process details, with tooling, controls, guarding, and utilities verified before ordering.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Model | TLPLMD 500/800 |
| Swing over bed | 420mm(16-5/9") |
| Distance Between Centers | 500mm/800mm(20"/31-1/2") |
| Max. Longitudinal Travel | 440mm/740mm(17-1/3"/29-1/8") |
| Max, Cross Travel | 200mm(7-7/8") |
| Taper of Spindle | MT4 |
| Spindle Hole | 28mm(1-1/9") |
| Step of spindle speed | 7 steps |
| Range of Spindle Speed | 160-1360 RPM |
| Barrel Travel | 70mm(2-3/4") |
| Taper of center | MT3 |
| Metric Thread Range | 0.2-6mm |
| Inch Thread Range | 4-120 ?.?.? |
| Longitudinal Range of Automatic Feeding | 0.05-0.35mm/0.002-0.014" |
| Cross Range of Automatic Feeding | 0.05-0.35mm/0.002-0.014" |
| Max. Drilling Capacity | 22mm(7/8") |
| Worktable Size (LxW) | 475×160mm(18/1-2"×6-2/7) |
| Worktable Size (LxW) | 475×160mm(18/1-2"×6-2/7) |
| Max. End Mill | 28mm(1-1/9") |
| Max. Face Mill | 80mm(3-1/7") |
| Distance Between Spindle Center and Column | 285mm(11-2/9") |
| Distance Between Spindle and Worktable | 306mm(12") |
| Head Stock travel of up and down | 110mm(4-1/3") |
| Spindle taper | MT3 |
| Step of Spindle Speed | 16 steps |
| Range of Spindle Speed | 120-3000 RPM |
| Swivel Degree of Head Stock | +- 360° |
| Motor power | 0.75 kW |
| Packing Size | 1430/1130×580×1100 mm |
| N. Weight/G. Weight | 245kg/280 kg |
| Loading Amount | 40pcs/20 Container |
