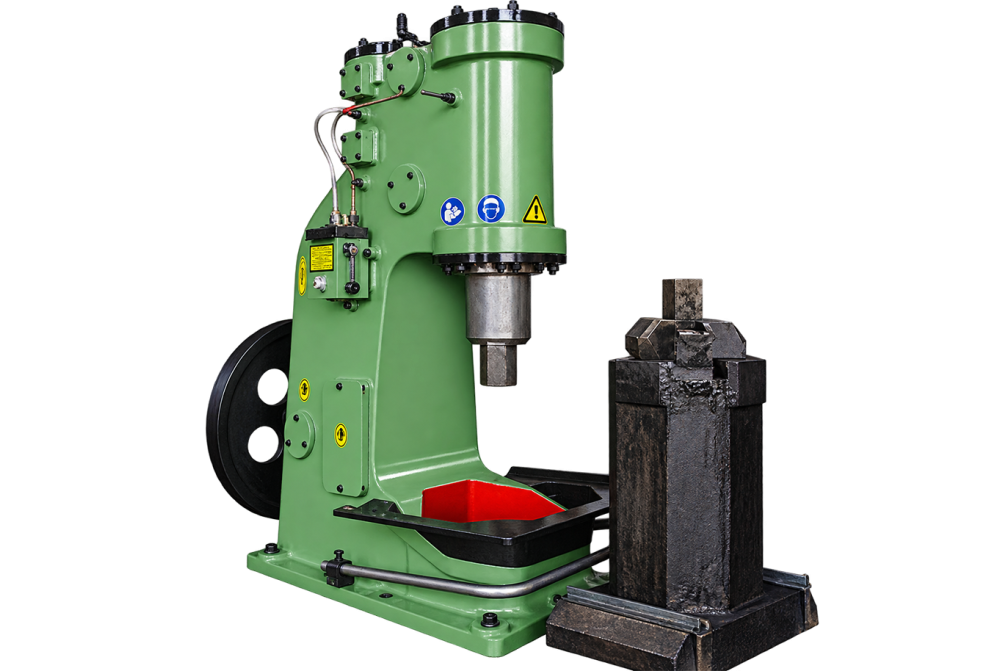

25 Kg Air Hammer Machine
The 25 Kg Air Hammer Machine is designed for forging and shaping heated metal. Typical users include forge shops, tool production, and blacksmith workshops, where repetitive impact that reduces manual hammering is valuable.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
25 Kg Air Hammer Machine
Machine Purpose
The 25 Kg Air Hammer Machine provides a dedicated method of forging and shaping heated metal. Rather than acting as unrelated general equipment, it brings the working elements together around bars, billets, tools, and forged components.
How It Works
A typical cycle begins with locating the job correctly, after which the machine delivers repeated powered blows between upper and lower tooling. Its repetitive impact that reduces manual hammering supports repeat work without replacing the need for trained operation.
Industrial Applications
Likely users are found in forge shops, tool production, and blacksmith workshops. They may use it to organise the named operation, reduce repeated handling, and establish a consistent workstation for suitable jobs.
Selection Considerations
Selection should follow the real workpiece, material, operation, production frequency, handling method, and available space. Exact performance data must come from the technical specification for the chosen 25 Kg Air Hammer Machine.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Model | PAH-25 |
| Weight of Falling Parts | 25 kg |
| Max. Hit Energy | 0.27 KJ |
| Height of Working Area | 240 mm |
| Hit Number | 200 min |
| Max. Square Steel Dia Can be forged | 40x40 mm |
| Max. Round Steel Dia Can be forged | 45 mm |
| Rate Power | 2.2 KW |
| Voltage | 380 V or Customized |
| Total Weights | 770 kg |
| Overall Dimension (LxWxH) | 900x510x1200 mm |
Short Videos
YouTube Short Videos
FAQs
Frequently Asked Questions
Which operation is the 25 Kg Air Hammer Machine designed to perform?
The 25 Kg Air Hammer Machine is intended for forging and shaping heated metal. It is arranged around bars, billets, tools, and forged components, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
How does a 25 Kg Air Hammer Machine work?
The machine delivers repeated powered blows between upper and lower tooling. Its repetitive impact that reduces manual hammering supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What type of work is suitable for a 25 Kg Air Hammer Machine?
It is primarily associated with bars, billets, tools, and forged components. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
What are the common applications of a 25 Kg Air Hammer Machine?
Typical users include forge shops, tool production, and blacksmith workshops. In these settings, the 25 Kg Air Hammer Machine may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
How can a buyer compare different 25 Kg Air Hammer Machine models?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
What routine maintenance does a 25 Kg Air Hammer Machine require?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
Why can the cost of a 25 Kg Air Hammer Machine vary between models?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title 25 Kg Air Hammer Machine.
