Lathe Machines

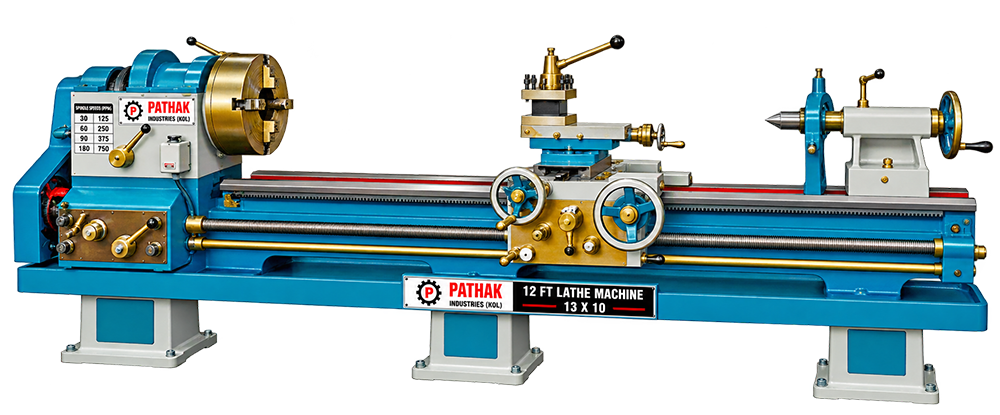

12 FT Lathe Machine 13X10
Built around turning rotational components and producing faces, diameters, bores, or threads, the 12 FT Lathe Machine 13X10 provides a dedicated working arrangement. Typical users include machine shops, repair workshops, tool rooms, and component plants, where rigid workholding with controlled tool travel is valuable.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
12 FT Lathe Machine 13X10
Machine Purpose
For facilities needing turning rotational components and producing faces, diameters, bores, or threads, the 12 FT Lathe Machine 13X10 offers a process-specific workstation. Its arrangement supports shafts, bushes, sleeves, discs, and other title-specific round parts while keeping the important operating area accessible.
Industrial Applications
Natural settings include machine shops, repair workshops, tool rooms, and component plants. There the machine may serve production, repair, preparation, assembly, finishing, or testing according to its title and the surrounding workflow.
How It Works
A typical cycle begins with locating the job correctly, after which the machine rotates a securely held workpiece while a guided tool removes material. Its rigid workholding with controlled tool travel supports repeat work without replacing the need for trained operation.
Selection Considerations
Selection should follow the real workpiece, material, operation, production frequency, handling method, and available space. Exact performance data must come from the technical specification for the chosen 12 FT Lathe Machine 13X10.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| TECHNICAL DATA AND SPECIFICATIONS FOR STANDARD MODEL VGM – 215 SUPER SERIES | |
|---|---|
| Centre Height over flat bed ways | 215 m.m. |
| Swing Over Bed | 423 m.m. |
| Swing Over Cross Slide | 250 m.m. |
| Swing in Gap | 620 m.m. |
| Width of Bed | 277 m.m. |
| MODEL | ADMIT BETWEEN CENTRES | LENGTH OF BED | Floor Space Occupied (m.m.) |
Approx.Weight in Kgs. | Approx. Case Dimensions (m.m.) |
|
|---|---|---|---|---|---|---|
| Nett. | Gross | |||||
| HGM-1 | 450 m.m. | 1370 m.m.(4′-6″) | 1650×970 | 775 | 825 | 2000x1000x1500 |
| HGM-2 | 725 m.m. | 1600 m.m.(5′-3″) | 1950×970 | 850 | 900 | 2200x1000x1500 |
| HGM-3 | 950 m.m. | 1830 m.m.(6′) | 2100×970 | 875 | 925 | 2500x1000x1500 |
Accessories
Standard Accessories / Machine Parts
Chuck Plate
Dead Centers
Face Plate
Follow Rest Assembly
Set of 22 Change Gears
Stationery Steady
Tool Box
Accessories
Optional Accessories
3jaw self centering chuck
4jaw Independent Chuck
Digital Read Out
Electric Coolant Pump
Electric Motor & Starter
Gears to Cut Metric Threads
Norton Gear Box
Revolving Center
Taper turning attachment
Tool Post Grinder
Applications
Applications
Aerospace Industry
Appliance Manufacturing
Automotive Industry
DIY metalworking and model engineering
Educational Institutes
Fabrication Workshops
General Sheet Metal Cutting
Heavy Engineering
Metal Fabrication Shops
Mining Industries
Power Plants
Precision turning of small parts
Shaft turning and thread cutting
Ship Building
Fasteners Industries
Steel & Paper Mills
Sugar Mills
Textile Industries
Tool Rooms
Turning, facing and taper turning of large diameter shafts
Used for heavy and long workpieces in large scale industries
FAQs
Frequently Asked Questions
Why is a 12 FT Lathe Machine 13X10 used in industrial work?
The 12 FT Lathe Machine 13X10 is intended for turning rotational components and producing faces, diameters, bores, or threads. It is arranged around shafts, bushes, sleeves, discs, and other title-specific round parts, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
What happens during operation of a 12 FT Lathe Machine 13X10?
The machine rotates a securely held workpiece while a guided tool removes material. Its rigid workholding with controlled tool travel supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What workpieces or materials can a 12 FT Lathe Machine 13X10 handle?
It is primarily associated with shafts, bushes, sleeves, discs, and other title-specific round parts. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
Where is a 12 FT Lathe Machine 13X10 typically installed?
Typical users include machine shops, repair workshops, tool rooms, and component plants. In these settings, the 12 FT Lathe Machine 13X10 may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
Which factors matter when selecting a 12 FT Lathe Machine 13X10?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
What maintenance checks are important for a 12 FT Lathe Machine 13X10?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
What factors affect the price of a 12 FT Lathe Machine 13X10?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title 12 FT Lathe Machine 13X10.
